The Poly-Stage
Precipitator - Improve Plant Exhaust...
Approved by Environmental Control
Agencies
The Poly-Stage Precipitator provides
a practical way to comply with the new pollution control codes, economically
- at minimum capital expenditure and minimal operating expense. Future
expansions and altering requirements can readily be accommodated.
High Efficiency - Low Operating
Costs
The Poly-Stage Precipitator operates
at less than 2 cents/hr/10,000 CFM. Power consumption is less than 100
Watts/1000 CFM. Minimal pressure drop is maintained at less than 0.6" WG
allowing existing ducts and blowers to be used.
Applicable to Many Industrial
Processes and Reclamation's
The Poly-Stage Precipitator system
will reclaim particles and aerosols as small as .01 microns from process
emissions common to modern industrial and chemical operations. This reduces
air contamination and permits reclamation of valuable components and re-usable
liquids.
Compact Modular Design
The Poly-Stage Precipitator system
is designed with multiple functional modules assuring efficient operation
at low voltage and constant operation during portional outages. Our engineers
design and arrange modules to suit each specific emission problem. |
The
chart above is used to dramatize the comparative size of various pollutants
and the superior efficiency of the Poly-Stage Precipitator on particles
not visible to the naked eye.

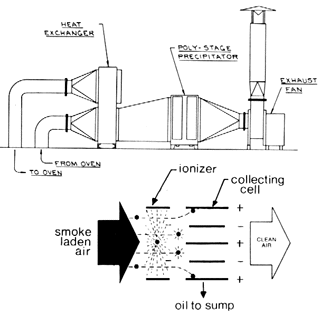

The Poly-Stage Precipitator removes sub-micron smoke
by electronically charging (negative) the particles as they pass through
the high-voltage ionizing screen. These particles are then attracted and
adhere to collecting plates, which form the positive elements of an electrostatic
field set up between a series of parallel plates electrically charged alternatively
positive and negative. Oil and plasticizer smoke collecting on the plates
drain into a sump. |
